Port of Hong Kong

Hong Kong is one of the busiest and most efficient international container ports in the world. It handled 20.8 million TEUs of containers in 2017. The port provided about 320 container liner services per week connecting to around 470 destinations worldwide.

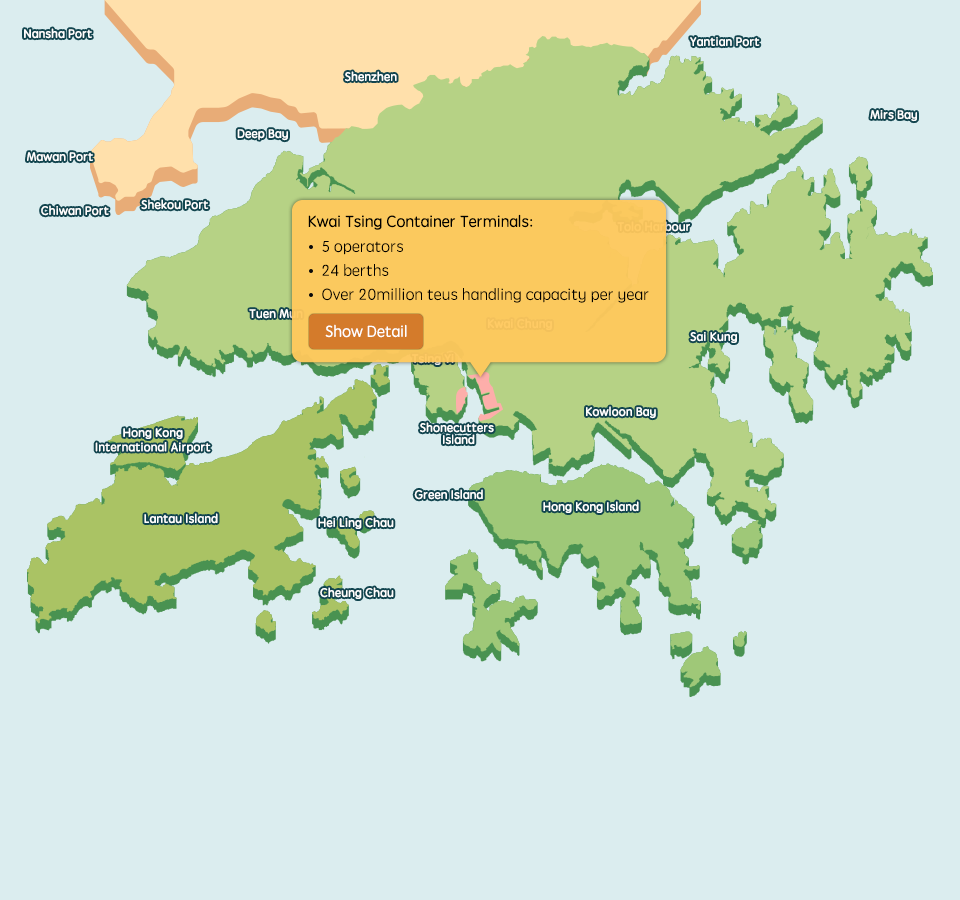

The locations of the major port facilities, including container terminals, the river trade terminal, mid-stream sites, public cargo working areas (PCWAs) and supporting facilities (e.g. shipyards and typhoon shelters) are shown in the above plan.

In 2017, the Kwai Chung-Tsing Yi Container Terminals handled 16.2 million TEUs, representing 78% of the port container throughput. The remaining 22% was handled at mid-stream sites, the river trade terminal, PCWAs, buoys and anchorages, and other wharves.

Port of Hong Kong
port

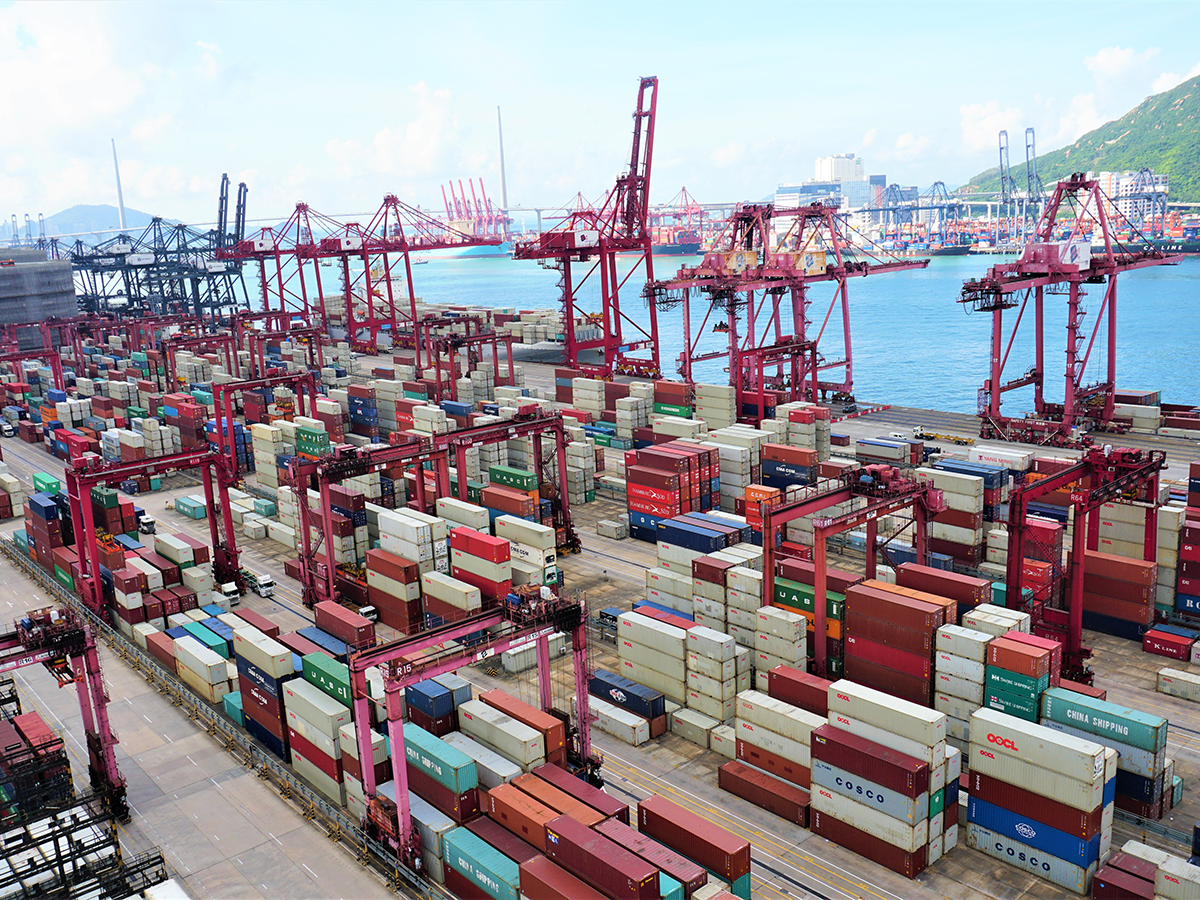

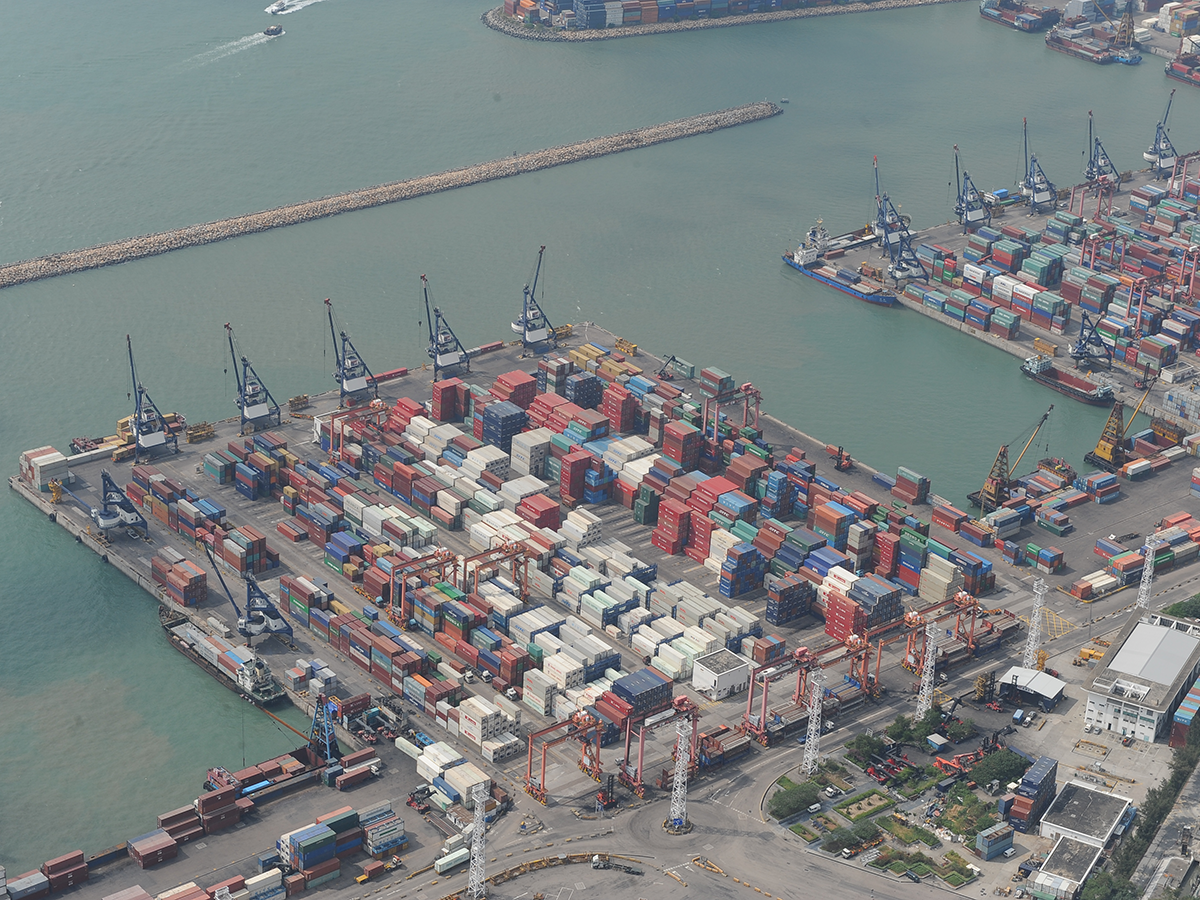

Container terminals

Container terminals (CTs) are situated in the Kwai Chung-Tsing Yi basin. There are nine terminals operated by five different operators, namely Modern Terminals Ltd (MTL), Hongkong International Terminals Ltd (HIT), COSCO-HIT Terminals (Hong Kong) Ltd (CHT), Goodman DP World Hong Kong Ltd and Asia Container Terminals Ltd (ACT). They occupy 279 hectares of land, providing 24 berths and 7 694 metres of deep water frontage.

The water depth of the Kwai Tsing Container Basin is 15 metres. A project to deepen the Basin and its approach to 17 metres has been substantially completed in April 2016. The total handling capacity of the container terminals is over 20 million TEUs per year.

Container terminals Container terminals Container terminals
port

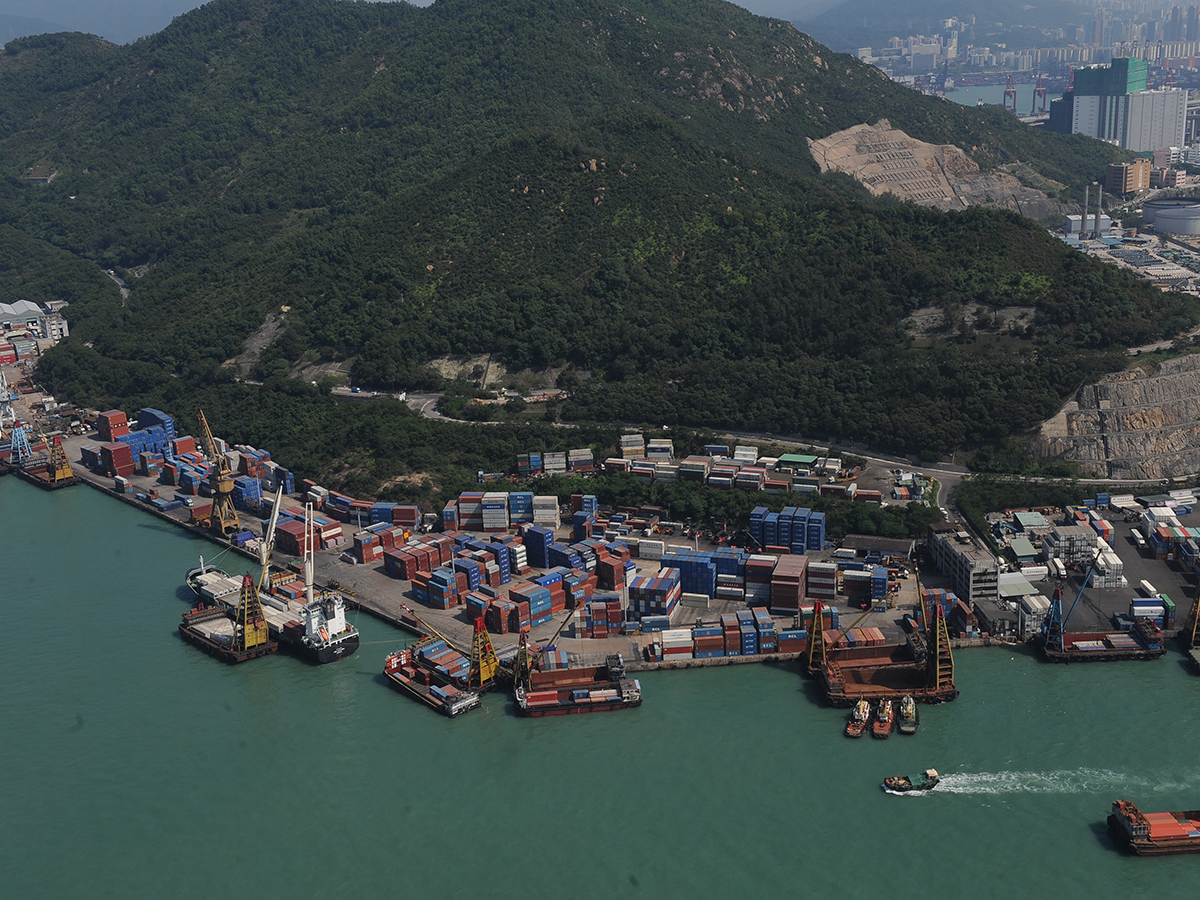

Mid-stream sites

The operation of mid-stream sites in Hong Kong mainly involves the loading and unloading of ocean and river cargoes from barges to trucks/lorries and vice versa. Currently, these sites occupy a total land area of about 33 hectares and water frontage of about 3 310 metres. They are either under long-term or short-term tenancies.

Mid-stream sites
port

River-trade terminals

The River Trade Terminal is currently the only dedicated river-trade terminal in Hong Kong. Its main function is to consolidate containerised, break bulk and bulk cargo shipped between Hong Kong Port and the ports in the Pearl River Delta. It is located near Pillar Point in Tuen Mun and operating with 65 hectares of land and 3,000 metres of quay.

River-trade terminals
port

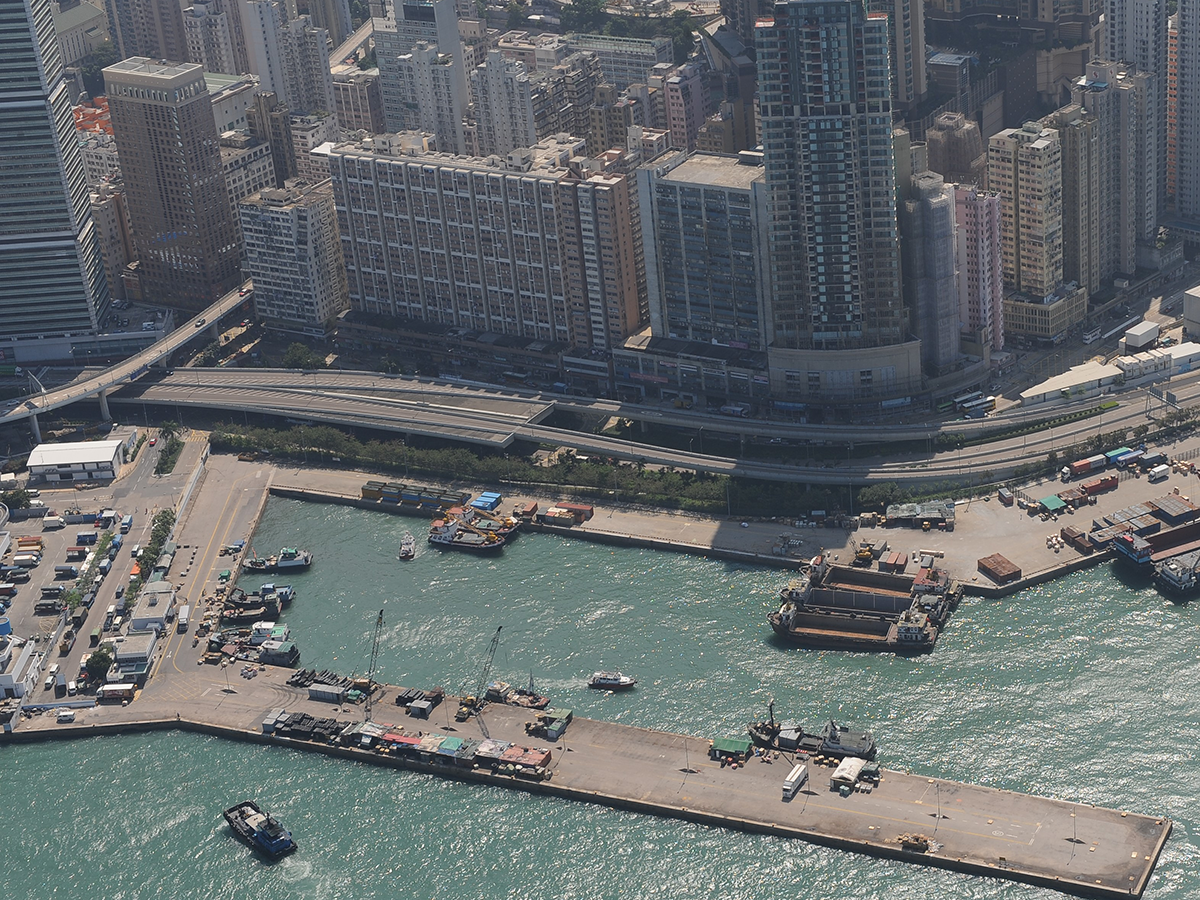

Public Cargo Working Areas

The operation of Public Cargo Working Areas (PCWAs) involves the short‐term allocation of berths and waterfront working areas for the purpose of loading and unloading cargo, bulk and containerised cargo to and from barges. PCWAs are currently situated at six different locations, providing a combined total quay length of 4,852 metres. They are managed by the Marine Department of the HKSAR Government.

Public Cargo Working Areas
port

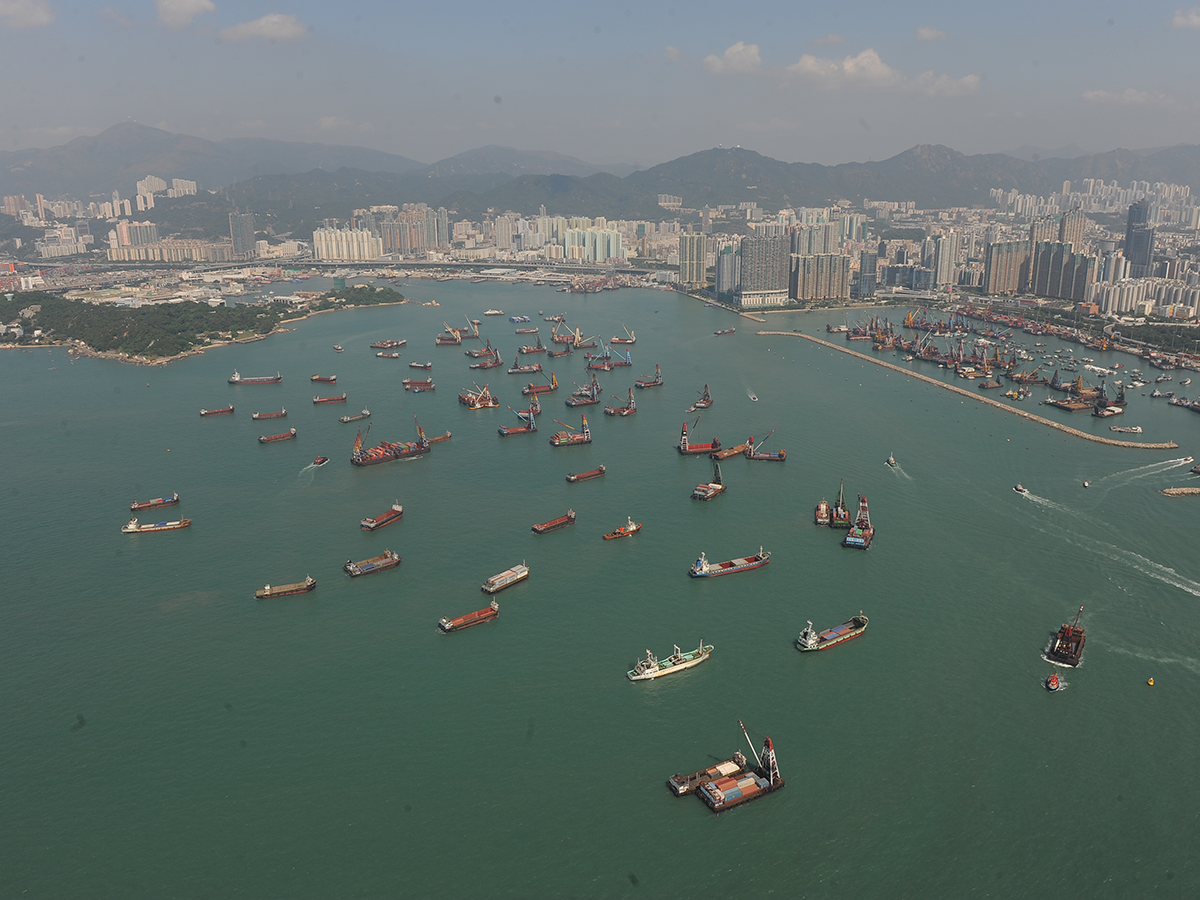

Buoys and anchorages

In Hong Kong, there are two types of Government Mooring Buoys (GMB) serving ocean-going vessels calling on the Hong Kong Port:

Class A GMBs - for vessels up to 183 m in length with drafts between 6.4 m and 9.8 m; and

Class B GMBs - for vessels up to 137 m in length with drafts between 6.4 m and 9.1 m.

GMBs allow ocean going vessels moored at anchorages to transfer their cargo to and from barges secured to the ships' sides. GMBs can also serve as typhoon moorings for vessels during extreme weather conditions, and can be used for other non-cargo activities such as mooring of cruise ships.

Hong Kong Port has 24 anchorages, 16 of which, with a total area of 3,606 hectares, can be used for cargo handling.

In 2017, a total of 1.6 million TEUs of containers and 28.5 million tonnes of non-containerised cargo were handled at the buoys and anchorages.

Buoys and anchorages
port

Port back-up facilities

Port back-up (PBU) activities are an integral part of the overall port operation in Hong Kong. They are essential port-related activities but do not need to be located within the confines of the port. PBU facilities include container depots, container yards, container vehicle parks and container vehicle repair workshops.

Currently, there are about 425 hectares of land being used for PBU facilities, about 100 hectares are located within the confines of the port and the rest are mainly located in the New Territories (e.g. Yuen Long, Lok Ma Chau).

port

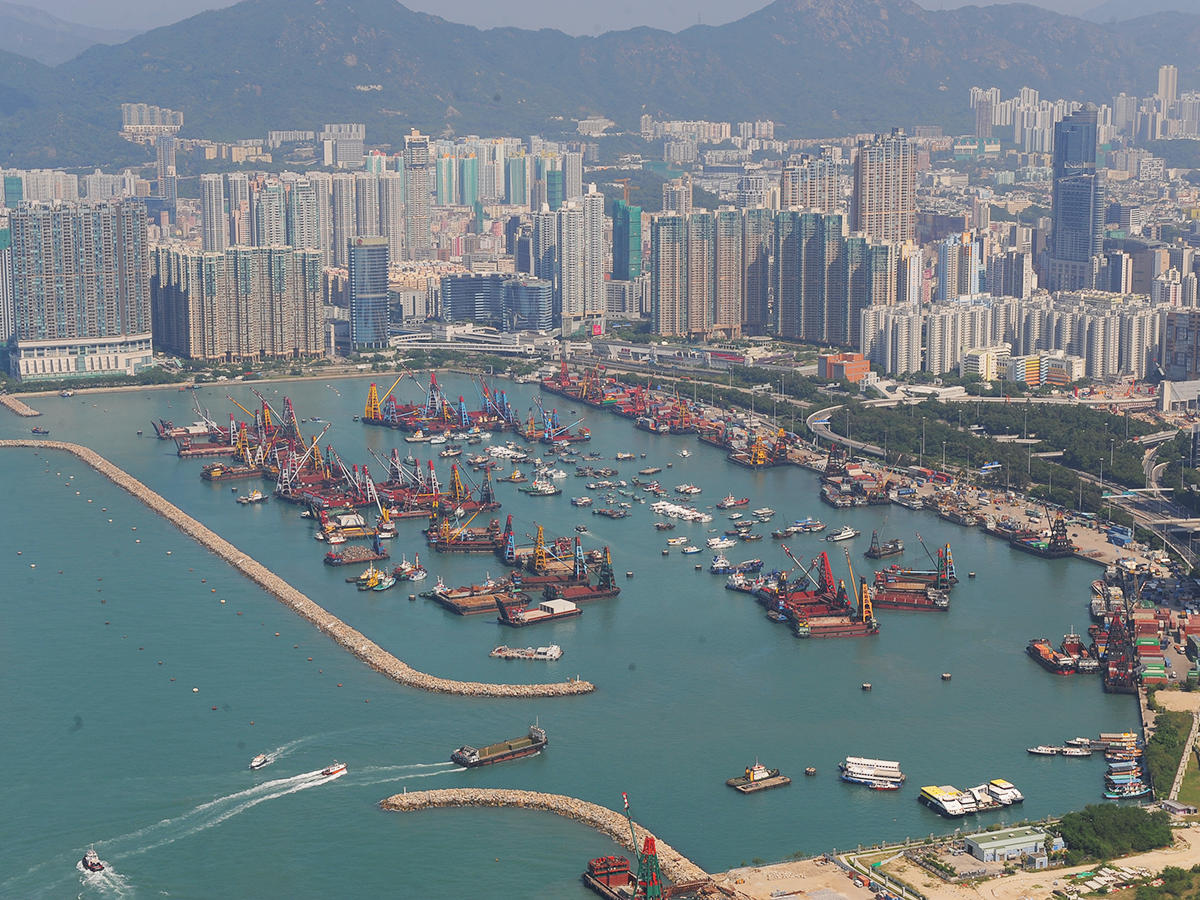

Typhoon shelters

Within Hong Kong, there are 14 typhoon shelters providing a total of 419 hectares of sheltered space for the protection of local vessels and river trade vessels during typhoons and inclement weather conditions. The use of typhoon shelters by vessels is subject to maximum length restrictions of 30.4 metres, 50 metres or 75 metres.

Typhoon shelters
port

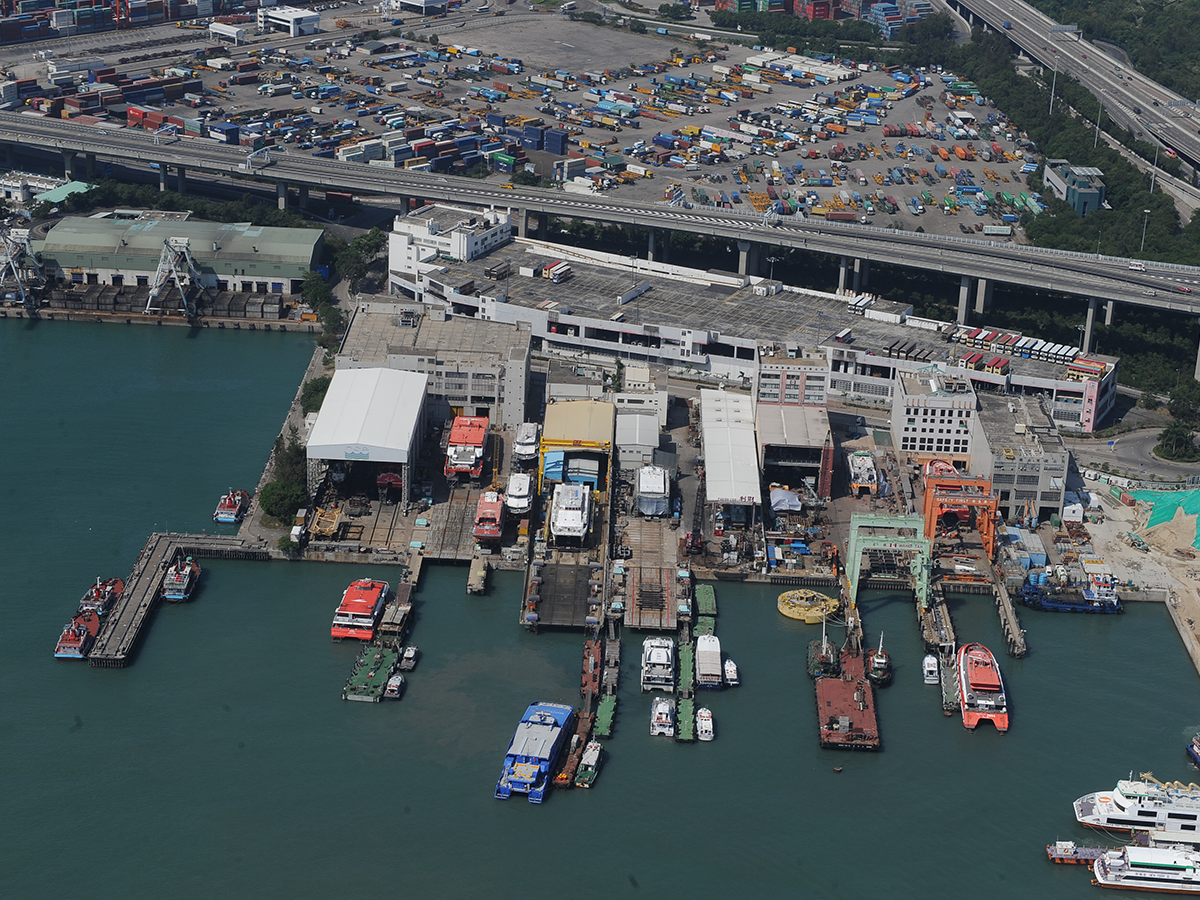

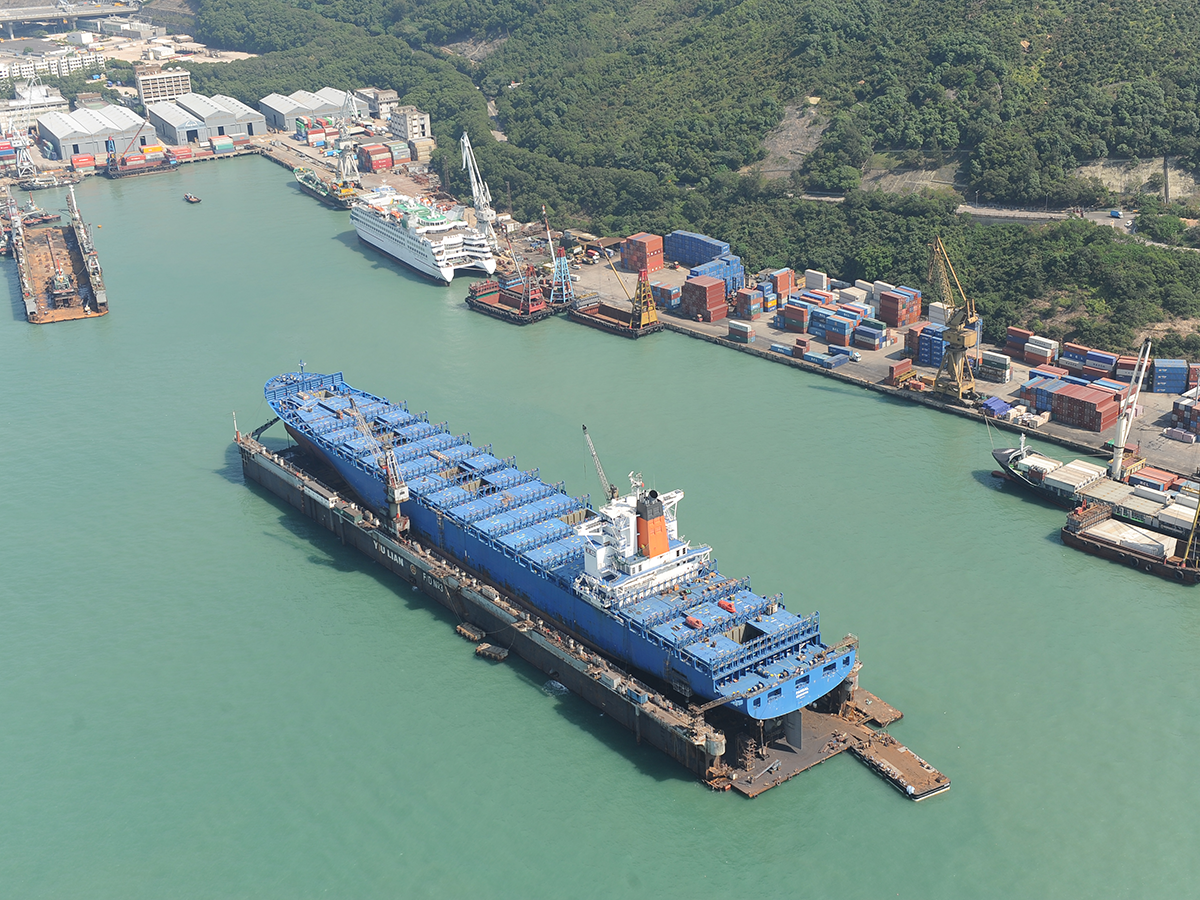

Ship repair yards

The port industry in Hong Kong is supported by two types of ship repair facility : small repair yards serving the local shipping fleet, and floating docks and ship repair yards which serve much larger ocean-going vessels.

While local ship repair yards are spread across 11 different districts within Hong Kong, the three floating docks are located off the coast of west Tsing Yi.

Ship repair yards Ship repair yards
